Irrigation Solutionx

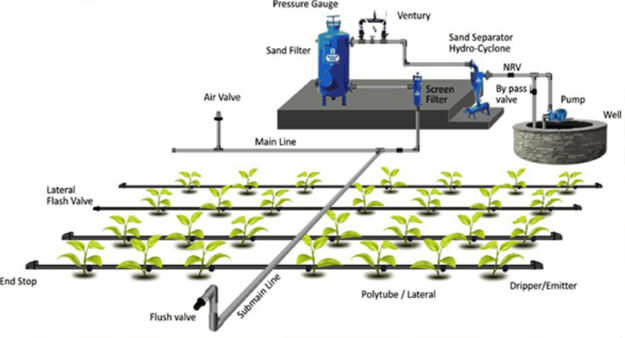

Drip Irrigation System

FarmTech® Drip Irrigation is built with latest technology keeping in mind the needs of Indian farmers. It removes the obstructions in flow of running irrigation system and deploys Inline Cylindrical Dripper with Sand Guard technology.

FEATURES:

Available in several ‘Dripper Spacing’ designs to suit varying plantation distances depending crop demand
Effective delivery of adequate water and manure to enable a good harvest.
Special inline Cylindrical Dripper with ‘Sand Guard’ technology.
Free from Acid treatment side effects.
Saving in Labour, Water and Electricity cost.
Suitable for a wide range of Water and Soil.
Low buying cost and maintenance cost
Easy and fast to deploy in fields.
Unique ‘Clog protection’ design ensures consistent flow
Four Outlet type construction of Drippers keeps wet and moist soil particles away
Secure connection of Dripper in Lateral delivers consistent performance

APPLICATIONS:

Ground Crop - Cotton Sugarcane Tobacco etc.
Horticulture Crops - Suitable for various types of Vegetables, Spices, Lentils and Fruit garden
Short-range Crops - Strawberry, Medicinal plants, Aromatic Plants etc.
Greenhouse Irrigation - Vegetables, Flory Culture etc.

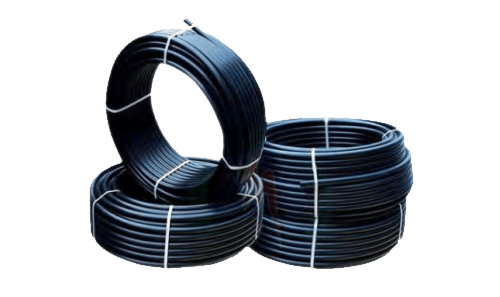

Drip LLDPE Laterals As Per is 13488

Lateral - Conforming to IS 13488
Drip Lateral sizes - 16 mm, 20 mm, 25 mm & 32 mm
Available in various classes like Class-I (1 kg/cm2 ), Class-2 (1.25 kg/cm2 ) Class-3 (2.5 kg/cm2 ), Class-4 (4 kg/cm2)

Hydro-cyclone Filter

Best suited for Sand removal
Internal and External connections - 2, 2.5 and 3 inch
Filtering capacity - 20, 30 and 40 m3 per hour.
Capacity of Sand integration chamber in bottom portion - 10 and 20 kg

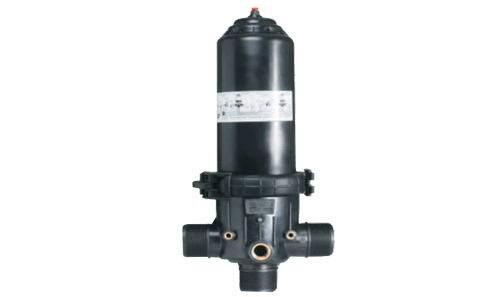

Screen Filter / Disc Filter

Internal and External Fittings - 2, 2.5 and 3 inch
Filtering Capacity - 10, 20, 30, 40 and 50 m3 per hour
Pressure Range - 2 kg / cm2 (min) and 5 kg/cm2 (max)
Filter Screen Size - 125 micron

Ventury Assembly

Available Sizes - ¾, 1.5 and 2 inch
Suitable for carrying Soluble fertilizers, Chemicals such as acids and Chlorine water
Made from high quality plastic material

Dripper

Suitable for all types of plants planted with adequate large gap
Water delivery at 1 kg/cm2 of pressure - 4 to 8 liters
Operating pressure range - 0.5 to 2 kg/cm2

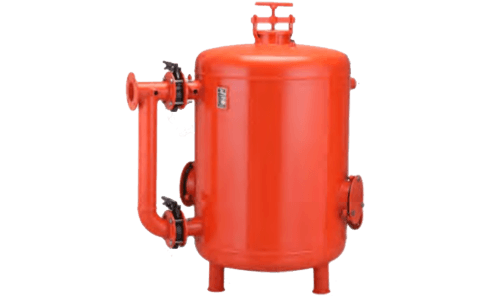

Sand Filter Assembly

Capable of filtering Moss and Mud from water
Internal and External fittings - 2, 2.5 and 3 inch
Filtering capacity - 10, 20, 30, 40 and 50 m3 per hour
Delivers better purification

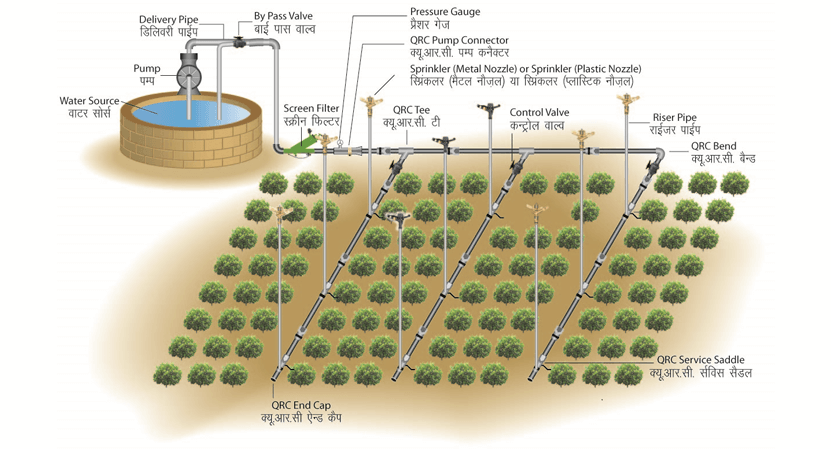

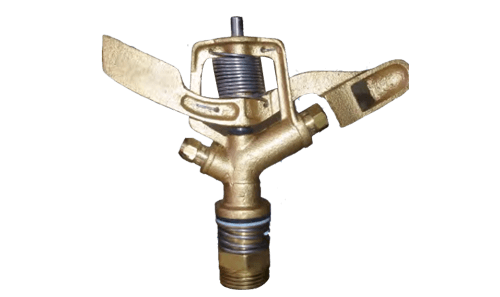

Sprinkler System

Farmtech® Sprinkler System provides rain like irrigations in form of water spray. Water is moved through pipes, pumping system and then sprayed in form of small droplets using sprinklers on the plants and ground like natural rain. Sprinkler irrigation is very effective in saving water and giving higher crop yield.

FEATURES:

Covers larger area of farm. Irrigated area increases by 1.5x to 2x for same water usage.
Delivers direct water saving of 25% to 50%.
Saves Electricity.
Offers greater advantage for places where the land is low.
Maintains right level of humidity in the soil.
Increased irrigation results in better Crop growth, farm yield and output quality.
Offers greater advantage for Gram, Mustard and Pulses.
